Nexans H07V-U MOBIWAY POP 1G1.5 green/yellow D100

Nexans H07V-U conductors are designed for domestic installations, housing, etc...
They are specially designed for panel wiring.
They are suitable for fixed and protected installations, in lighting and control devices for voltages less than or equal to 1000V in alternating current and less than or equal to 750V in direct current to earth.

ADVANTAGES

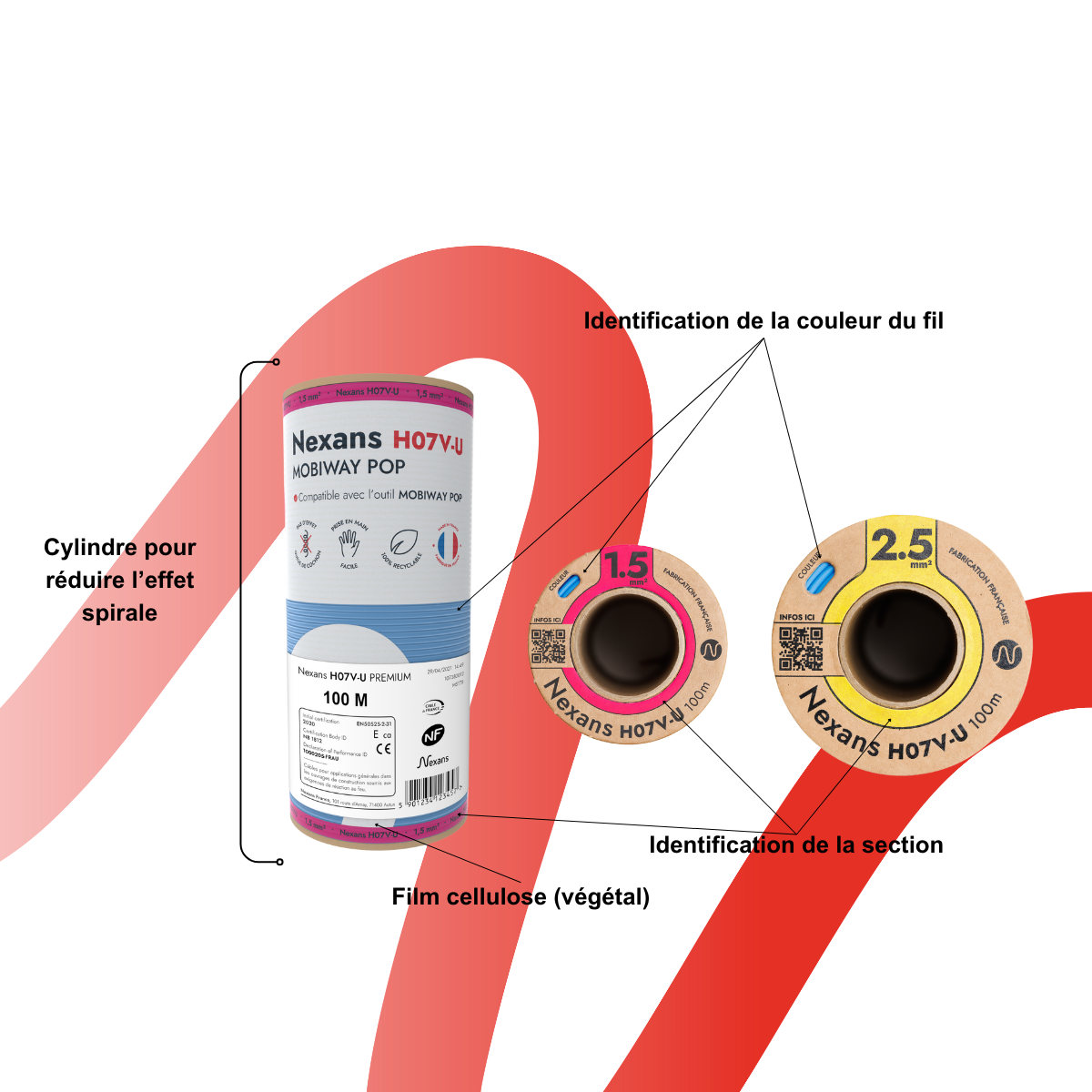

Nexans H07V-U Mobiway Pop wire spools have been designed to facilitate the work of installers. The compact spool format drastically reduces the spiral effect and facilitates wire pulling. This Nexans innovation is unique and saves time and comfort on worksites.
The section of the wires is immediately identifiable: section 1.5 in pink and 2.5 in yellow.

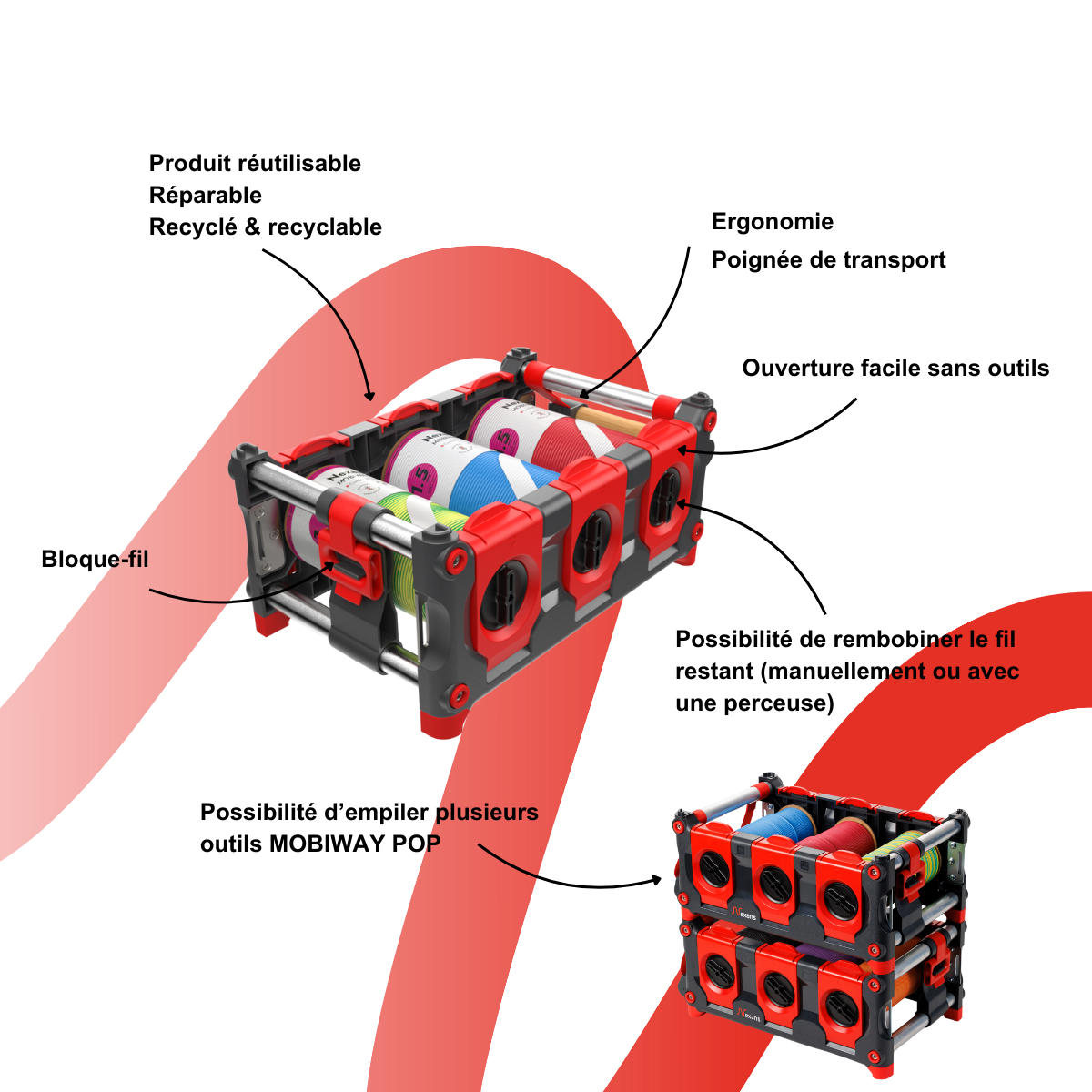

This innovative format reveals its full potential when combined with the Nexans Mobiway Pop tool, which further simplifies transport and allows up to six wires to be pulled simultaneously.
This new solution, perfectly adapted to professionals, improves working conditions by reducing uncomfortable postures and increasing safety on construction sites.

Environment
100% sustainable
0 disposable plastic
100% recyclable cardboard spool

Engagement
Ergonomic and safe, 67% fewer uncomfortable postures
Optimised safety for installers
Ease of transport

Economy
30% space saving

Design

1. Conductor

Bare copper class 1

2. Insulation

PVC

Different colours


INSTALLATION

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.

Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.

Voltage drop

Calculated with Cos phi = 0.8

MARKING

S.Y + USEH07V-U n° Plant
