XnUHAKXS 1*120/50 8.7/15KV NEW
Nexans ref. M4A4P 000221 - Country ref. M4A4P 1*120/50(F)//POL-2
- Conductor cross-section: 120 mm²
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 31.0 mm
XnUHAKXS 1*240/50 8.7/15KV NEW
Nexans ref. M4A4P 000222 - Country ref. M4A4P 1*240/50(F)//POL-2
- Conductor cross-section: 240 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
Description
Description
Standards
-
ProductIEC 60502-2
-
TestIEC 60332-1-2
AL/SC/XLPE/SC/SC SWEL/CU WIRES/SWEL/PE
APPLICATION
Power use outdoor application, even wet.
Suitable for fixed installations at open air, in tube or canals and underground.
Max. Operation temperature: 90°
Max. Short circuit temperature : 250° (Max 5 s)

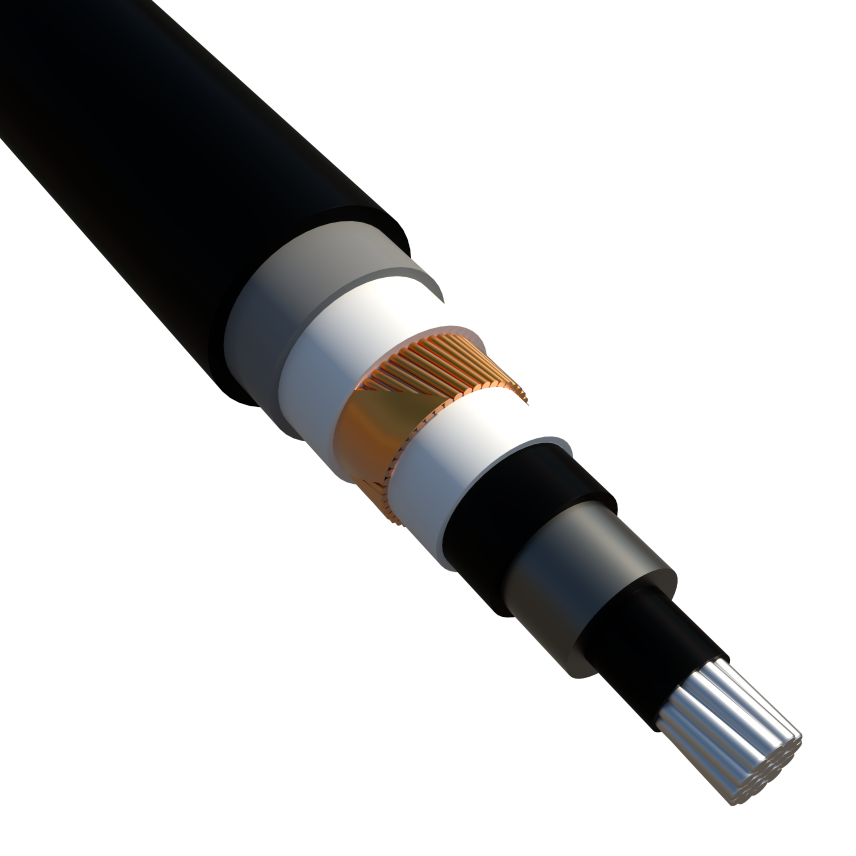

CONSTRUCTION
1. Conductor:
Compacted Round conductor class 2
2. Insulation:
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer
3. Water proof tape:
Semi-conductive swelling tape
4. Metallic screen layer:
Copper wires with open helix copper tape
5. Water proof tape:
Swelling tape
6. Outer sheath:
PE, Black or as per customer requirement
7. Marking:
By Inkjet
8. Packing:
Drums can be wooden or steel
