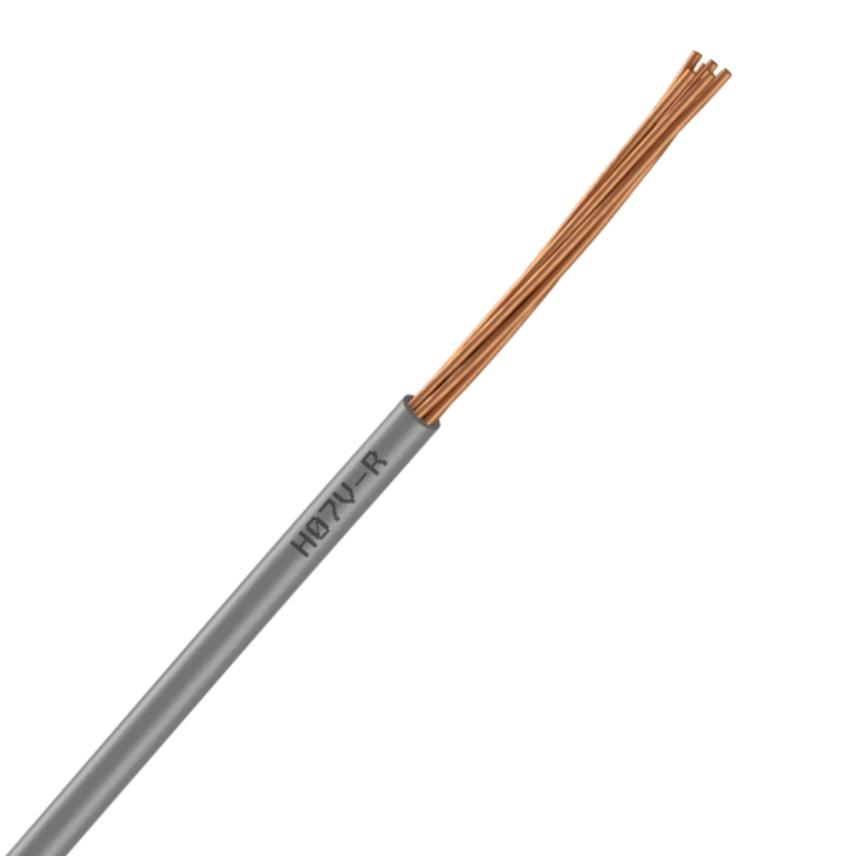

LIR H07V-R 1x6 mm² GR Nrl 100M

Application

Nexans H07V-R are insulated stranded copper conductors, used for fixed protected installations indoors for power supply or lightings (from offices, domestic or commercial buidings...) with voltage up to 1000V AC or 750V DC.



Installation

In conduit, insulated support, ducts... in covered an dry place.

Permissible current are given for conductor laid alone in insulating tube on a wall temperature at 30°C .
If conditions are différent, apply correction factors in accordance with  NF C 15-100 standard or other equivalent national standard.

Design

1. Conductor
   Bare copper class 2
2. Insulation
   PVC
   Différent colors.

Marking

S.Y + USE «har» H07V-R factory number.

Voltage drop

Calculated with Cos phi = 0,8
