YHKXS 3*240/50 6/10KV
YHKXS 3*240/50 6/10KV
XLPE Unarmored cable with copper conductor. International code: YHKXS or N2XSEY
Czytaj więcej- Nexans ref. : M3N4 000931
- Kraj ref. : M3N4 3*240/50//POL-3
Opis
Opis
Standardy
-
ProductIEC 60228; IEC 60502-2
-
TestIEC 60332-1-2

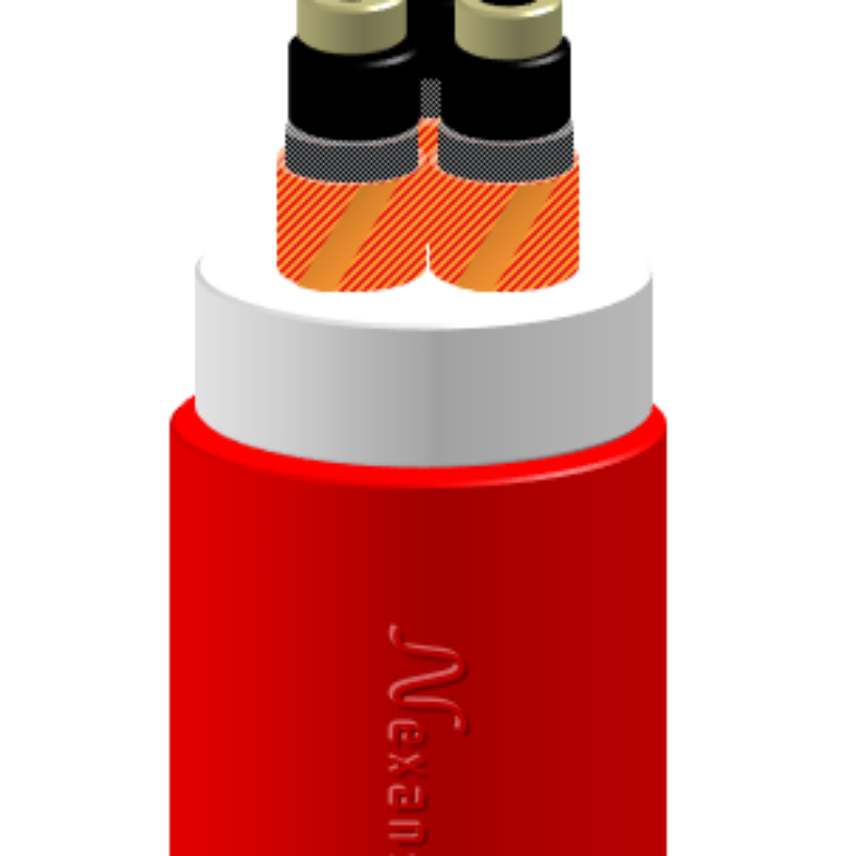

CU/SC/XLPE/SC/SC TAPE/CU WIRES/ low temp. PVC
APPLICATION
Power use outdoor application, even wet.
Suitable for fixed installations at open air, in tube or canals and underground.
Max. Operation temperature: 90°
Max. Short circuit temperature : 250° (Max 5 s)
CONSTRUCTION
1. Conductor:
Compacted Round conductor class 2
2. Insulation:
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer + Semi-conductive tape
3. Metallic screen layer:
Copper wires with open helix copper tape on each core
4. Assembling:
Conductors are laid up with non-hygroscopic fillers
5. Outer sheath:
Low Temperature PVC, Red or as per customer requirement
6. Marking:
By Inkjet
7. Packing:
Drums can be wooden or steel
TEST AT WORKS according to IEC 60502-2
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-2 Parag. 17.5.2
Metallic screen : according to IEC 60502-2 Parag. 17.7
Oversheath : according to IEC 60502-2 Parag. 17.5.3
- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-2.
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
DRAWING YnHKXS
